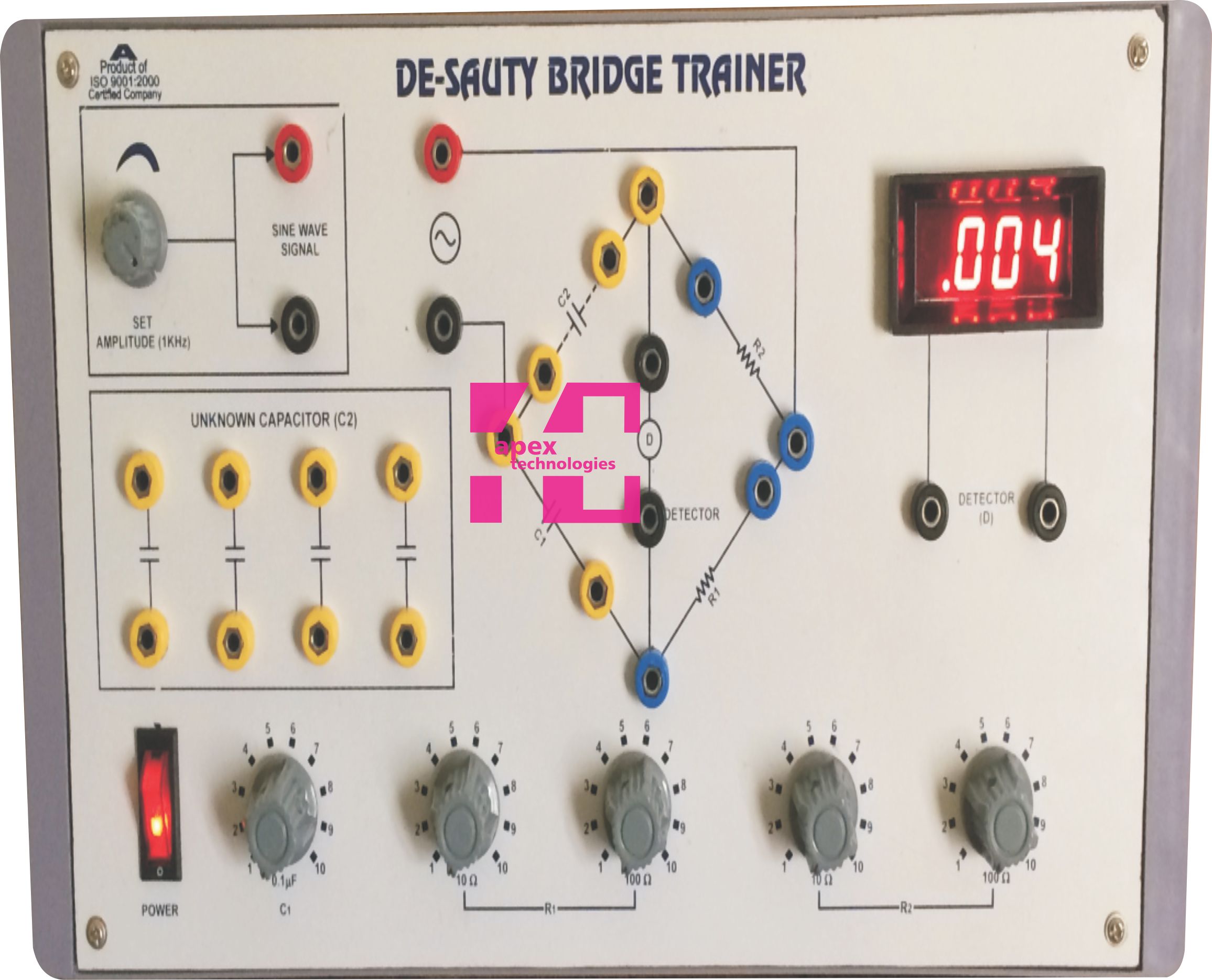

In built Fixed DC Regulated Power Supply of ±5V ±12V & +5V/500mA
Inbuilt Sine wave Oscillator, Frequency 1KHz ±3%,amplitude 0- 15Vpp.
Inbuilt 3 1/2 digit Digital Null Detector used as Detector.
On Board one decade dial x (0.1μF) ‘C1’.
On Board two set of two decade dial x(10Ω & 100Ω)marked ‘R’ & ‘R2′.
On Board two set of Two Decade dial x(1Ω, 10Ω & 100Ω) marked “Y’.
On Board Four Unknown capacitor are mounted behind the front panel with connections are brought out on front panel.
Circuit Diagram of Discrete Component Printed & all important connection brought on front Panel.
Bakelite used as front Panel & Mounted on Light weight shock Proof Plastic Cabinet.
