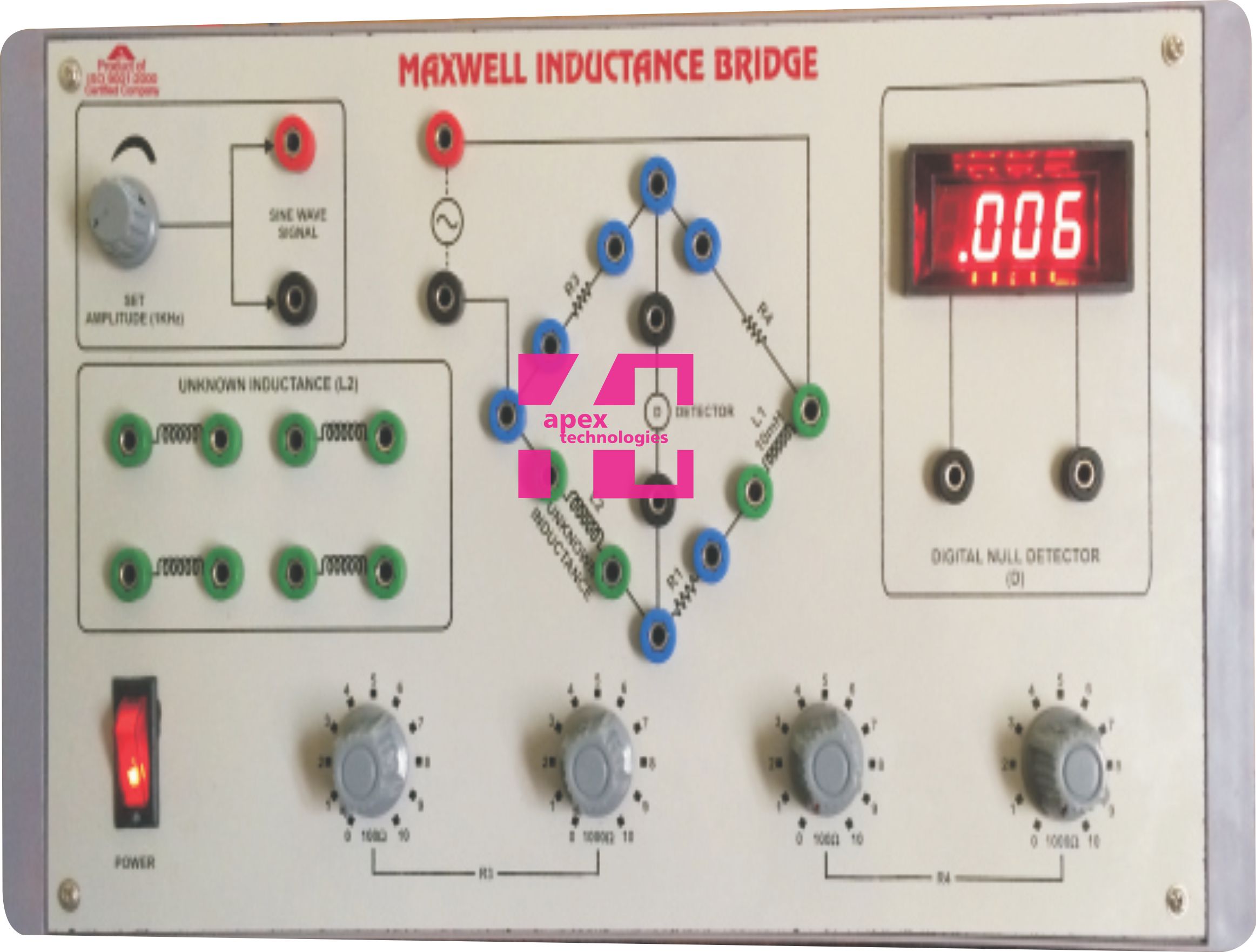

Electrical BridgesMaxwell Inductance Bridges
- In built Fixed DC Regulated Power Supply of ±5V ± 12V & +5V/500mA.
- Inbuilt Sine Wave Oscillator, Frequency 1KHZ ±3%, amplitude 0- 15Vpp.
- In built 3 1/2 digit Digital Null Detector used as Detector.
- On Board Two Decade dial x(100Ω & 1000Ω) marked “R3” & “R4”
- On Board Four unknown inductance are mounted behind the front panel with connections are brought out on front Panel.
- Circuit Diagram of Discrete Component Printed & all important connection are brought out on front Panel.
- Bakelite used as front Panel & mounted on shock proof wooden cabinet.
