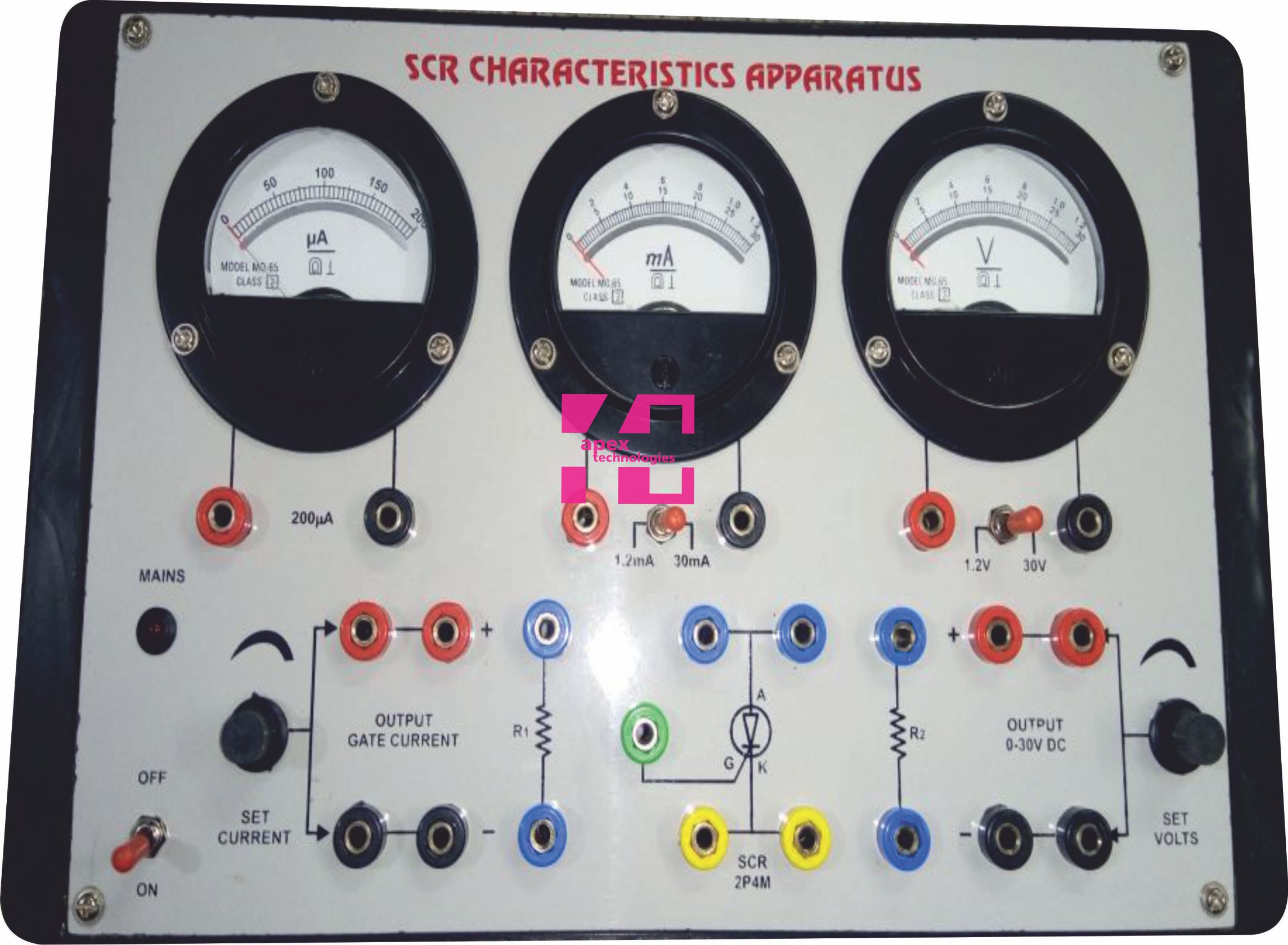

SCR Characteristics Apparatus

Type                                                          SCR TYPE : 2P4M.

Material                                                    ABS Cabinet

Size                                                            330 mm x 205 mm x 85 mm

Meters Range                                          ( 200 A , 3mA / 30mA , 30V )

Power Supply                                          Two Variable DC Regulated ( 0 – 3V & 0 – 30V )

Display Type                                            Analog

OBJECTIVE : To plot V – I characteristics of SCR.
Apparatus Comprises of Two Variable DC Regulated Power Supply (0 – 3V & 0 – 30V) with three Analog Moving Coil Meters with accuracy of ± 1.5% Grade “A” (200 A, 3mA / 30mA, 30V). SCR TYPE: 2P4M. 4mm Banana type sockets for connections. ISI marked fine quality Bakelite Front Panel with Light weight shock proof ABS Plastic cabinet. Cabinet Size (mm): 330 mm x 205 mm x 85 mm. Power Requirement for apparatus: 220V AC ±10%, 50Hz with included Standard Accessories Patch Cords & Instruction Manual.
