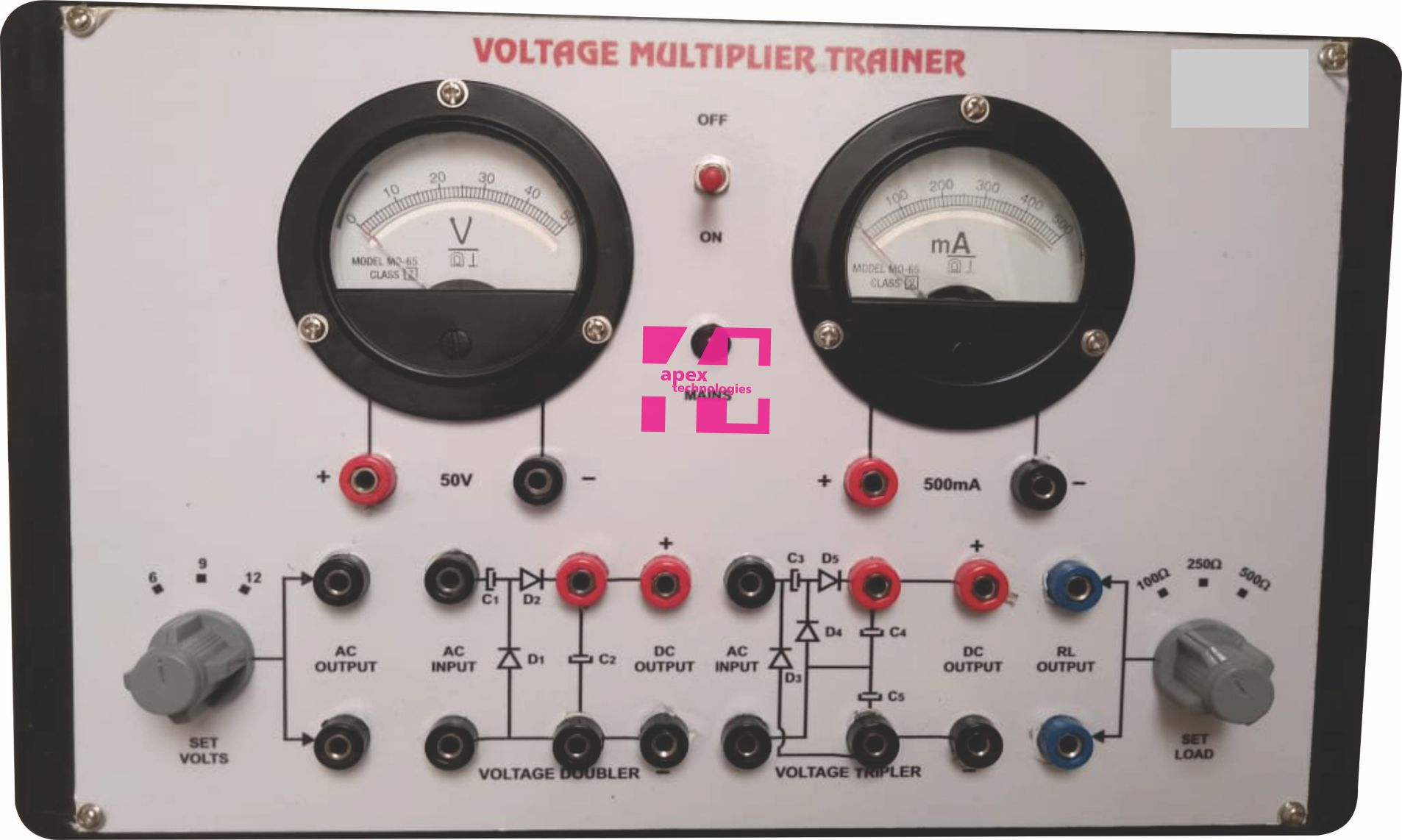

Voltage Multiplier Trainer

An electronic circuit consisting of diodes and capacitors and converts an AC electrical signal from a lower voltage value to a higher DC voltage value is referred to as a voltage multiplier. Voltage multipliers are used in several electronic appliances to generate a voltage signal of few volts to millions of volts.
