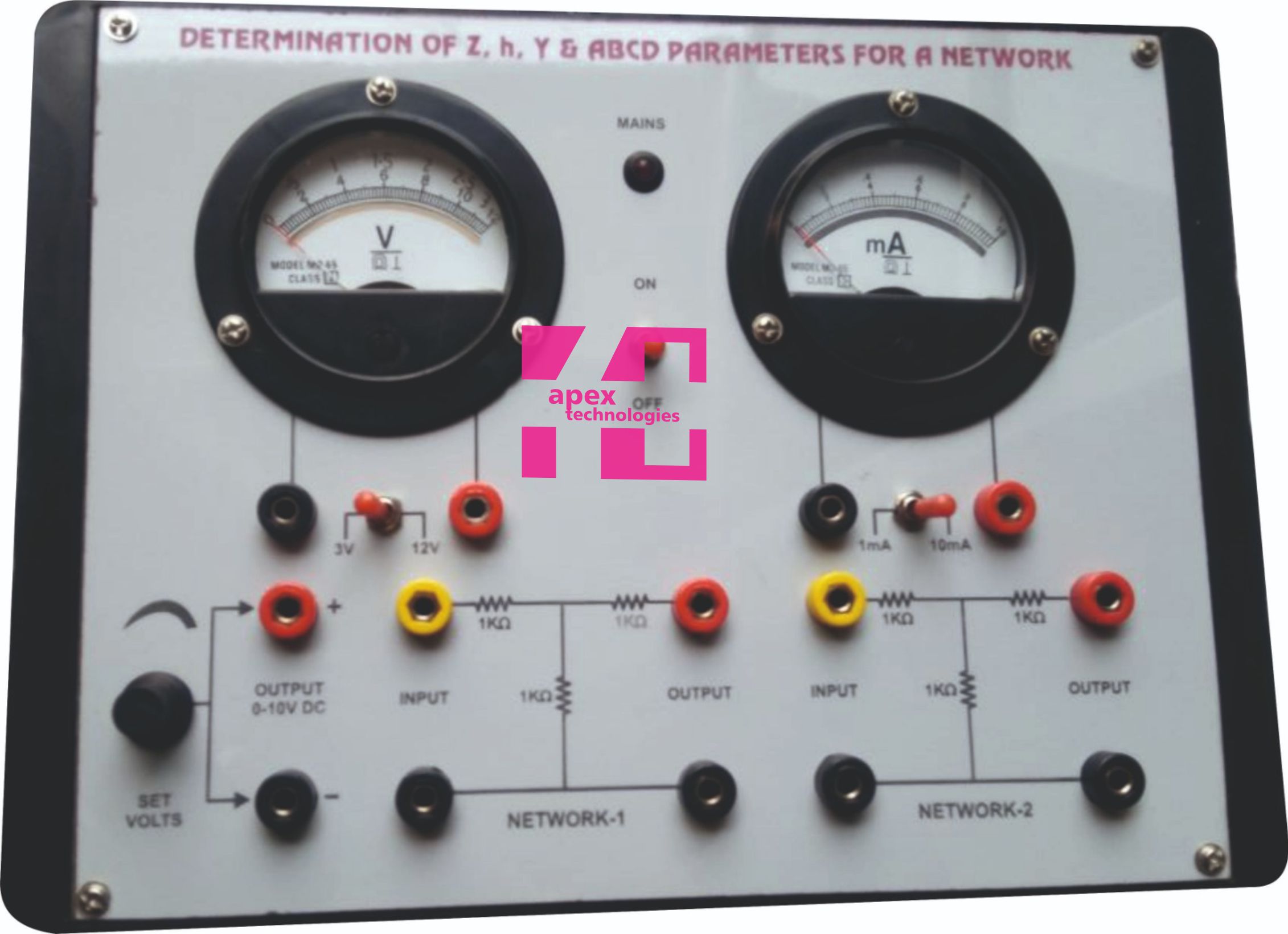

Z & Y Parameters of Two Port Network Trainer

Two Port Network Trainer has been designed specifically for Two Port Network Analysis. This is useful Scope of Learning

Study of Z Parameters of a Passive Two Port Network

Study of Y Parameters of a Passive Two Port Network

Study of ABCD-Parameters of a Passive Two Port Network Features

Easy Experiments Illustration of Two Port Network analysis

Mains Supply           230V ± 10%, 50 Hz

Inbuilt                        0 – 30V DC Power Supply

Two Analog Meters for Voltage and current measurement.

‘T’ & Pie network provided on the board.

Variable Resistor using band switch is mounted on the board.

Dimensions (mm)       W 250  x D 150  x H80

Weight                           600 gm
